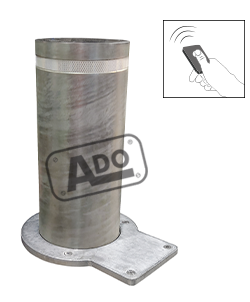

    DUBAI AUTOMATIC RETRACTABLE BOLLARD

    pilona escamoteable automatica dubai

    High-end hydraulic automatic retractable bollard designed for intensive use, highly resistant to impacts.

    Automatic bollards with tubular structure (shaft), tubular chassis and cover all made out of hot-dip galvanised steel, hidraulic motor.

    Automatic bollards ideal for municipalities, consulates, banks, shopping centres, luxury shops, etc...

    dubai automatic bollards models
    Reference Diameter Thickness Shaft height
    PEAAB120X500 ø 114 mm. 10 mm. 500 mm.
    PEAAB220X500 ø 220 mm. 10 mm. 500 mm.
    PEAAB120X750 ø 114 mm. 10 mm. 750 mm.
    PEAAB220X750 ø 220 mm. 10 mm. 750 mm.

    AUTOMATIC BOLLARDS SPECIFICATIONS

    • Hydraulic operator by means of an integrated drive system avoiding external circuits and possible breakdowns or leakages.
    • Bollard shaft with sliding system using 8 mm thick steel inner skids.
    • Cover made out of 6 mm thick hot-dip galvanised steel, not protruding above ground level, anti-slip concentric circles engravings and inner anti-friction ring for the correct sliding of the bollard, avoiding noise and chafing. Security screws.
    • Chassis manufactured from electro-welded steel of very high robustness with sliding rails to ensure the perfect alignment and concentricity of the bollard.
    • Force (ascent) 1.400 N.
    • Silent ascent and descent movement.
    • Installation by embedment in concrete that results in major impact resistance.
      Installation of a lost casing
    • Easy installation (see easy assembly KIT).
    • Minimal preventive maintenance.
    • Safety secured by permanent block or free fall electrovalve according to the customer's needs.

    Automatic bollard in line with EC law.

    normativa ce

    MELBOURNE AUTOMATIC RETRACTABLE BOLLARD OPTIONAL FINISHES

    • 360º light crown. Different models and colours available.
    • Gradient bollard manufacture according to slope.
    • Vertical milling (6, 8 or 12 millings, depending on bollard diameter).
    • Additional Level 3 reflective bands + horizontal milling.
    • Heater (to prevent ice formation).
    • Chassis cover (ground level) in AISI 304 stainless steel (AISI 316 on request).
    • Bollard position micro indicators.
    Vertical milling

    Vertical milling

    Extra milling

    Extra milling

    Corten steel

    Weathering steel

    DUBAI AUTOMATIC RETRACTABLE BOLLARD CUSTOMIZATION

    • Coat of arms, logo or text customization (micro engraving, laser or acid).
    • Special designs and size (according to the customer's needs).
    Emblem, logo or text customization

    Coat of arms, logo or text customization

    Bespoken telescopic bollards

    Custom designs

    ACCESORIES AUTOMATIC DUBAI BOLLARDS

    • Activation systems among which the customer can choose: remote controls, buttons, proximity cards, TAGs, mobile phone activation system, license plate reader, time schedule.
    • Siren detector (identifying the signal of homologated sirens, ambulances, police, firefighters, etc.) lowers the bpollard to secure the passage of emergency vehicles with no stops.
    • Safety vehicle detectors (magnetic loop).
    • Bollard anti-tampering alarm.
    • Access control post.
    • Signal traffic light.
    • Automatic bollards warning road sign.
    Top opening detector

    Top opening
    detector

    Metallic mass detector

    Metallic mass
    detector

    Connection kit

    Connection kit

    heating

    Heating

    Traffic signals

    Traffic signals

    Box Caisson

    Box Caisson

    Road plate

    Road plate

    Bollard manipulated alarm

    Bollard manipulated alarm

    More information:

    Related products:

    TECHNICAL AND AFTER-SALES SERVICE

    We have a technical department to provide service and support in the facilities. We are manufacturers and installers of automatic and semi-automatic bollards. Our bollards are shipped with an easy-to-install kit and assembly instructions.

    Automatic bollards, semi-automatic pivots, automatic bollard, semi-automatic, removable bollard, automatic retractable bollards, automatic bollards, semi-automatic bollards, automatic retractable bollards, access control, license plate reading, remote controls, automatic bollard installers, retractable bollards, removable bollards, retractable bollards, telescopic bollards, maintenance, automatic pivots, automatic bollards, streets, parks, town halls, public areas, pneumatics, prices, budget, automata, PLC, Siemens, control center, magnetic loop, presence detector, automatic retractable bollards, automatic bollards, automatic pivots, automatic stainless steel bollard, automatic security bollards, automatic anti-moon bollards, automatic retractable anti-theft bollards, semi-automatic bollards, security bollards, automatic iron bollard, semi-automatic bollard.

    Upon request, we can manufacture semi-automatic and automatic bollards according to customer needs, adapting to all types of designs, measurements and thicknesses that the customer needs.

    Consult with our commercial technicians so they can advise you on the automatic bollards that best suit your needs.
