    BRUSELAS SEMI-AUTOMATIC RETRACTABLE BOLLARD

    High-end semi-automatic retractable bollard for manual use, highly resistant to impacts.

    semi-automatic retractable bollard bruselas

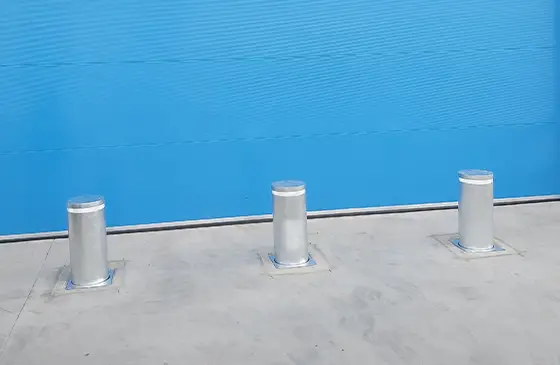

    semi-automatic retractable bollard bruselas installed
    bruselas semiautomatic telescopic bollard bruselas semiautomatic telescopic bollard

    Semi-automatic bollards with tubular structure (shaft) and tubular chassis made out of hot-dip galvanised steel, foundation case in galvanised steel.

    Semi-automatic bollards ideal for municipalities, consulates, banks, shopping centres, luxury shops, etc...

    semiautomatic bollard bruselas
    Reference Diameter Thickness Shaft height
    PEMBR114X500 ø 114 mm. 10 mm. 500 mm.
    PEMBR220X500 ø 220 mm. 10 mm. 500 mm.
    PEMBR114X750 ø 114 mm. 10 mm. 750 mm.
    PEMBR220X750 ø 220 mm. 10 mm. 750 mm.

    SEMI-AUTOMATIC BOLLARDS SPECIFICATIONS

    • Pump system by means of a high-quality gas piston that allows the bollard to rise after unlocking the activation mechanism.
    • Ascent and discent: the bollard has a hole on the chassis cap where the key must be inserted in order to rise and lower. 16 mm locking rod made out of stainless steel. Its composition prevents from any type of wear and corrosion, guaranteeing long durability and perfect operation.
    • By inserting and turning the triangular key and pressing the top of the bollard, it descends, automatically blocking once its way ends.
    • Bollard sliding system by means of internal rails located on the chassis itself.
    • Bollard shaft with sliding system using 8 mm thick stainless steel inner skids and milling for reflective band (it protects the band from deterioration).
    • Cover made out of 10 mm thick hot-dip galvanised steel, not protruding above ground level, anti-slip concentric circles engravings and inner plastic ring for the correct sliding of the bollard, avoiding noise and chafing.
    • Chassis manufactured from electro-welded steel of very high robustness with sliding rails to ensure the perfect alignment and concentricity of the bollard.
    • Installation by means of foundation box. It allows the replacement of the bollard already installed without needing civil works.
      Installation of a lost casing
    • Minimum preventive maintenance.

    Semiautomatic bollard that fulfil with CE policies.

    normativa ce

    BRUSELAS SEMI-AUTOMATIC RETRACTABLE BOLLARD OPTIONAL FINISHES

    • 360º light crown. Different models and colours available.
    • Gradient bollard manufacture according to slope.
    • Vertical milling (6, 8 or 12 millings, depending on bollard diameter).
    • Additional Level 3 reflective bands + horizontal milling.
    • Chassis cover (ground level) in AISI 304 stainless steel (AISI 316 on request).
    • Protective lid for safety lock.
    • Anti-theft safety key (tire type).
    Vertical milling
    Vertical milling
    Extra milling
    Extra milling
    Corten steel
    Weathering steel
    Stainless steel chassis cover
    Stainless steel
    chassis cover
    Car wheel anti-theft type security key
    Car wheel anti-theft
    type security key
    foundation box
    Foundation box

    ESTOCOLMO SEMI-AUTOMATIC BOLLARD CUSTOMIZATION

    • Coat of arms, logo or text customization (micro engraving, laser or acid).
    • Special designs and size (according to the customer's needs).
    Emblem, logo or text customization

    Coat of arms, logo or text customization

    Bespoken telescopic bollards

    Custom designs

    More information:

    Related products:

    TECHNICAL AND AFTER-SALES SERVICE

    We have a technical department to provide service and support in the facilities. We are manufacturers and installers of automatic and semi-automatic bollards. Our bollards are shipped with an easy-to-install kit and assembly instructions.

    Automatic bollards, semi-automatic pivots, automatic bollard, semi-automatic, removable bollard, automatic retractable bollards, automatic bollards, semi-automatic bollards, automatic retractable bollards, access control, license plate reading, remote controls, automatic bollard installers, retractable bollards, removable bollards, retractable bollards, telescopic bollards, maintenance, automatic pivots, automatic bollards, streets, parks, town halls, public areas, pneumatics, prices, budget, automata, PLC, Siemens, control center, magnetic loop, presence detector, automatic retractable bollards, automatic bollards, automatic pivots, automatic stainless steel bollard, automatic security bollards, automatic anti-moon bollards, automatic retractable anti-theft bollards, semi-automatic bollards, security bollards, automatic iron bollard, semi-automatic bollard.

    Upon request, we can manufacture semi-automatic and automatic bollards according to customer needs, adapting to all types of designs, measurements and thicknesses that the customer needs.

    Consult with our commercial technicians so they can advise you on the semiautomatic bollards that best suit your needs.
