IPN BOLLARD

MEASURES

Ref. PIPNG

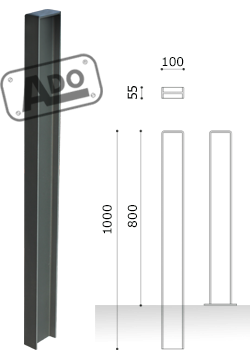

Measures:
: 100x55 mm.
Visual height: 800 mm.
Total height: 1000 mm.

See removable bollard

FEATURES FIXED IPN BOLLARD

• Bollards built with a 100x55 mm IPE iron beam.
• Upper part with rounded edges avoiding possible damage to people.
• Overall height 1000mm.

Standard finishes:

• Grey oxiron. - Ref. PIPNG

Optional:

• Plate for bollard ø 100/120 mm. - Ref. SUPP
• Customization with logo engraving.
• Possibility of manufacturing in imitation corten or in other colors (according to Ral letter).

Recommended screws bollard with plate:

• For concrete: Block of 11. - Ref. T11L

• For asphalt / panot: Block of 10. - Ref. T10X135


Accessories:

• 1 ring for bollard. - Ref. S1AP
• 2 rings for bollard. - Ref. S2AP
• Galvanized chain of ø 6 mm. - Ref. CG6100
• 40mm brass padlock. with steel arch. - Ref. CNMCAD40
