HEXALINE BOLLARD

MEASURES

Ref. PHEXALINECO

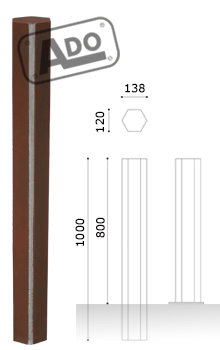

Measures:
Width: 138x120 mm.
Visible height: 800 mm.
Total height: 1000 mm.
Thickness: 2mm.

FEATURES FIXED BOLLARD HEXALINE

• Bollard made with an octagonal structure with a diameter of 138x120 mm. and 2mm. of thickness
• Total height 1000 mm.

Optional:

• Plate for bollard 138x120 mm. - Ref. SUPP1

Recommended screws bollard with plate:

• For concrete: Block of 11. - Ref. T11L

• For asphalt / panot: Block of 10. - Ref. T10X135


Accessories:

• 1 ring for bollard. - Ref. S1AP
• 2 rings for bollard. - Ref. S2AP
• Galvanized chain of ø 6 mm. - Ref. CG6100
• 40mm brass padlock. with steel arch. - Ref. CNMCAD40

Corten finish options:

No blasting

Blasting

Activate and stop rust

Varnished

* The appearance of corten steel varies according to the processes selected by the client.
