    Home > Street furniture > Fixed bollards > City reinforced bollard

    CITY REINFORCED BOLLARD (patented model)

    The reinforced city bollard replaces the Hospitalet or Barcelona 92 bollard, the reinforced City bollard is built in a single piece avoiding the breakage of the upper part of the bollard, by means of its two lateral iron reinforcements, located just above the steel ring stainless.

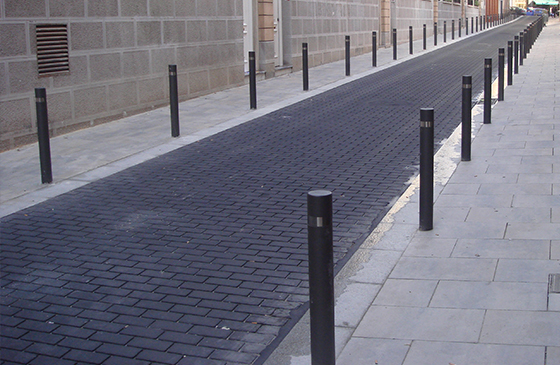

    installed city bollards
    city corten bollard installed city bollard installed

    Our City bollard has been created at the request of the municipalities to solve the problem of the upper breakage of bollards with stainless steel ring that can harm pedestrians, damage the image of the city and the places where they are installed.

    In this way we have created our CITY REINFORCED bollard in a single piece.

    MEASURES

    city reinforced bollard

    Ref. PCITY

    Measures:
    Diameter: ø 95 mm.
    Visual height: 800 mm.
    Total height: 970 mm.

    FEATURES REINFORCED CITY BOLLARD

    Features new CITY REINFORCED bollard:

    • Bollards built with interior and exterior anti-rust galvanized iron tube.
    • Upper part with rounded edges avoiding possible damage to people.
    • Anti-poster / sticker surface treatment.
    • Galvanized iron tube with a diameter of 95 mm.
    • Total height 970 mm. 40mm top ring.
    • Standard finish in grey oxiron or imitation corten.

    Standard finishes:

    • Oxiron grey. - Ref. PCITY

    Opcional:

    • Logo customization:
      - Logo creation on bollards. - Ref. CRELOG
      - Preparation of the logo on an engraving machine.
      Ref. CRELOGMAQ
      - Engrave logo on 1-sided bollards. - Ref. LOGPI1C
      - Engrave logo on 2-sided bollards. - Ref. LOGPI2C
    • Reflecting tape.
    • Other colors (according to Ral chart).
    logo customization
    ×

    Accessories:

    • 1 ring for bollard. - Ref. S1AP
    • 2 rings for bollard. - Ref. S2AP
    • Galvanized chain of ø 6 mm. - Ref. CG6100
    • 40mm brass padlock. with steel arch. - Ref. CNMCAD40
    city bollard reinforcement detail
    Bollard reinforcement detail avoiding
    thus breaking the top.

    city detail rounded edges
    Rounded edge details.

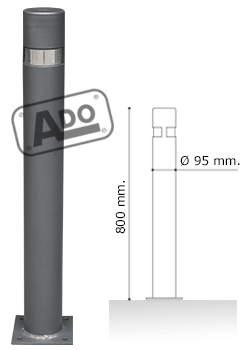

    CITY BOLLARD WITH PLATE

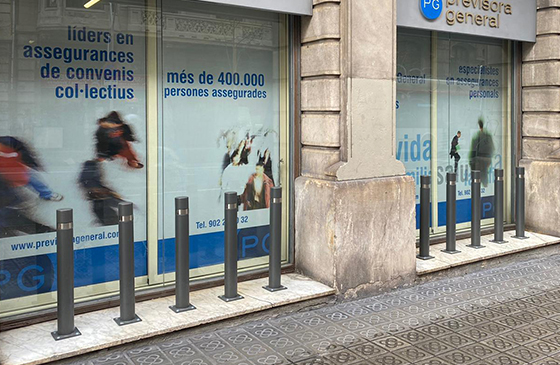

    city bollard with plate installed in barcelona
    city bollards with airport parking plate pilona city instaladas con placa

    MEASURES

    city bollard with plate

    Ref. PCITYPC

    Measures:
    Diameter: ø 95 mm.
    Visual height: 800 mm.

    FEATURES REINFORCED CITY BOLLARD WITH PLATE

    Features new CITY REINFORCED bollard:

    • Bollards built with interior and exterior anti-rust galvanized iron tube.
    • Upper part with rounded edges avoiding possible damage to people.
    • Anti-poster / sticker surface treatment.
    • Galvanized iron tube with a diameter of 95 mm.
    • Total height 970 mm. 40mm top ring.
    • Standard finish in grey oxiron or imitation corten.

    Standard finishes:

    • Oxiron grey. - Ref. PCITYPC

    Opcional:

    • Logo customization:
      - Logo creation on bollards. - Ref. CRELOG
      - Preparation of the logo on an engraving machine.
      Ref. CRELOGMAQ
      - Engrave logo on 1-sided bollards. - Ref. LOGPI1C
      - Engrave logo on 2-sided bollards. - Ref. LOGPI2C
    • Reflecting tape.
    • Other colors (according to Ral chart).
    logo customization

    Recommended screws bollard with plate:

    • For concrete: Block of 11. - Ref. T11L
      screws
    • For asphalt / panot: Block of 10. - Ref. T10X135
      screws

    Accessories:

    • 1 ring for bollard. - Ref. S1AP
    • 2 rings for bollard. - Ref. S2AP
    • Galvanized chain of ø 6 mm. - Ref. CG6100
    • 40mm brass padlock. with steel arch. - Ref. CNMCAD40

    More information:

    CITY 2 REINFORCED BOLLARD (patented model)

    City 2 bollard

    Ref. PCITY2

    Measures:
    External diameter: ø 108 mm.
    Inside diameter: ø 104 mm.
    Height: 850 mm.
    Thickness: 2 mm.

    The replacement reinforced city bollard has been created to solve the problems of replacing existing ones broken by the upper part. Generally, when the Barcelona or Hospitalet bollards receive an impact on the joints of the stainless steel with the cast iron or iron parts, they break, potentially damaging pedestrians and spoiling the image of the city. The replacement of these damaged bollards is expensive due to the work to be carried out as a bricklayer for the disassembly and assembly of a new bollard.

    The reinforced City bollard is an economical and quick solution to replace broken bollards, avoiding masonry work.

    Features CITY 2 REINFORCED:

    • Bollards built with iron tube.
    • Iron tube of diameter 108 mm and 2 mm thick.
    • Total height 850 mm.
    • Iron tube cut by laser joining the upper and lower parts by 2 strips of the same tube, thus avoiding the frequent breakage of the upper part of the hospitalet bollard.
    • Finished in iron painted in black oxiron, wood imitation and color chart to choose from.

    Opcional:

    • Logo customization:
      - Logo creation on bollards. - Ref. CRELOG
      - Preparation of the logo on an engraving machine.
      Ref. CRELOGMAQ
      - Engrave logo on 1-sided bollards. - Ref. LOGPI1C
      - Engrave logo on 2-sided bollards. - Ref. LOGPI2C
    • Reflecting tape.
    • Other colors (according to Ral chart).
    logo customization

    Accessories:

    • 1 ring for bollard. - Ref. S1AP
    • 2 rings for bollard. - Ref. S2AP
    • Galvanized chain of ø 6 mm. - Ref. CG6100
    • 40mm brass padlock. with steel arch. - Ref. CNMCAD40

    Easy installation in just 2 steps:

    • Superimpose the new bollard on the broken bollard.
    • Screw or rivet the new bollard with the old broken bollard to fix it.
    city2 bollard installation
    city2 bollard installation
    city2 bollard installation

    TECHNICAL SERVICE AND SALE OF FIXED IRON BOLLARDS

    We have a technical department to provide service and advice on the facilities, we are manufacturers of fixed iron bollards of ø100 Pcity to embed or screw to the ground and installers hospitalet bollard H214, bollards halos Uh1, bollard barcelona 92 c-43.
